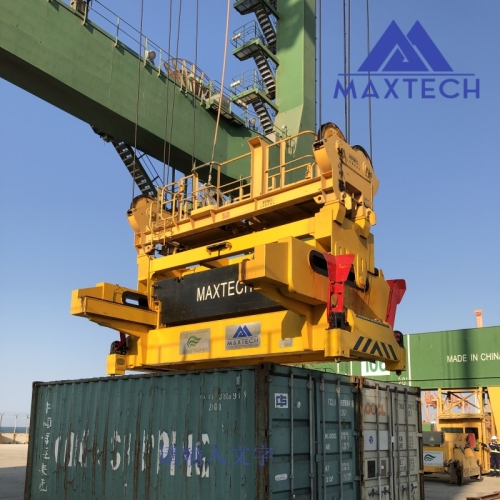

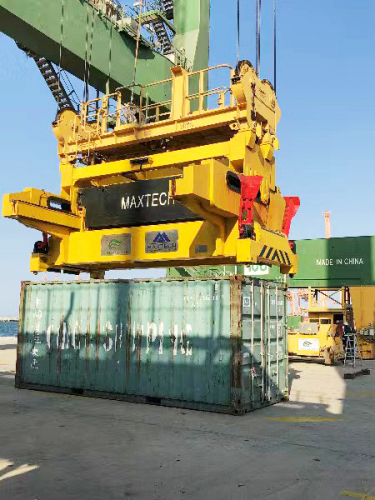

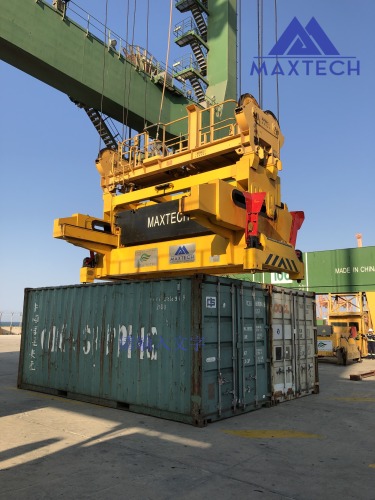

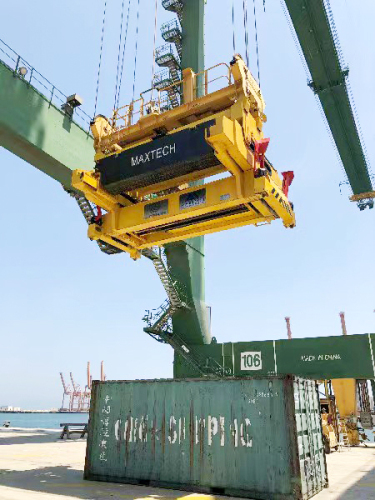

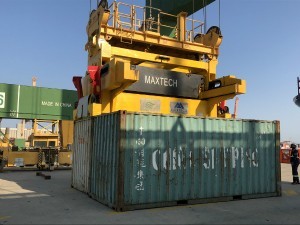

【Model:TX-SS-JZX520】 |
Control voltage |
DC 24V |
||
For operation with ISO standard 20’,40’ containers |
Total power |
7.5~11KW |
||
SWL |
900mm 28T 600mm 32T |
Precaution class |
IP 55 |
|
Load of lifting lugs at four corner |
10.5t×4 |
Operating pressure of the system |
160 bar |
|
Self-weight |
~34 t |
Ambient temperature |
-20℃ ~+55℃ |
|
Expansion time (20’to 40’) |
~ 38 S |
Twist lock Mode |
ISO floating twist lock, driven by an oil cylinder |
|
Twist lock rotation 90° |
~ 1.5 S |
|
The telescopic system is driven by means of a hydraulic motor and reduction gearbox connected to an endless chain. |
|
Flipper through 180° |
~ 7 S |
Flippers Device |
The flippers are drived by hydraulic |
|
Move 900mm |
~15 S |
Adjust gravity |
Drived by hydraulic cylinder |
|
Power voltage/ Frequency |
AC400V (3P)/60HZ |
Application |
STS |
|
Operating mode |
Driving operation |
Electric control |
SIEMENS / Schneider |
