Description
Description

Technical parameter

Automatic container spreader for multi-size containers is controlled by the PLC control system, and the purpose of lifting muti-size containers can be achieved by moving the position of the twist lock.

The above shown container spreader is customized by the Americal customer who has a largest conatiners factory

【Model: JZX】

Control voltage

DC 24V

For operation with 19 non-standard containers

Total power

~3.26 KW

SWL (empty container)

15 T

Precaution class

IP 55

Self-weight (spreader)

~ 5t

Ambient temperature

-20℃ ~ +55℃

Twist lock rotation 90°

~ 1.5 S

Twist lock Mode

ISO twist lock, driven by motor

Voltage/ Frequency

DC24V & DC48V

Telescopic Mode

Brake motor driver, screw transmission

Operating mode

Touch screen control box

& wireless remote control

Application

Crane

Please send us email with your working requirements to customize your perfect suitable container spreade

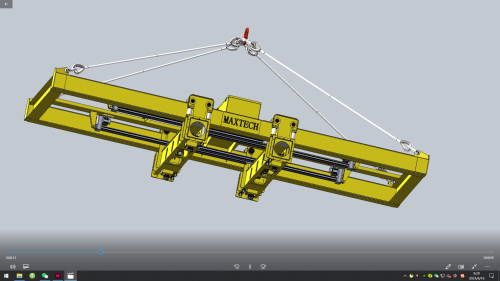

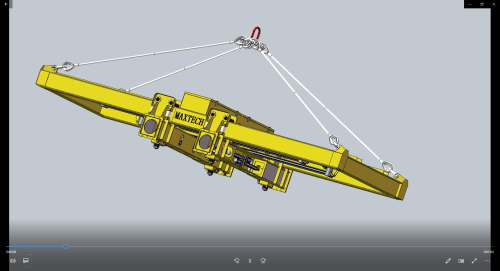

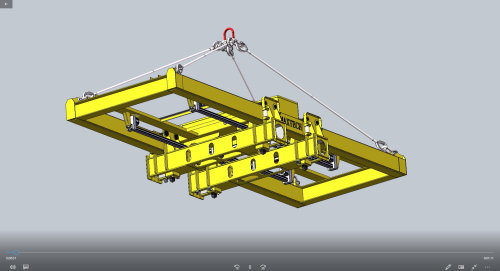

3D Drawing

Please send us email with your working requirements to customize your perfect suitable container spreader

Our advantage

Quality - Safe & Reliable

We insurance the quality are safe and reliable.

1.Self-own factory & Engineering designer

So that we can control each step of the production.

2.Six Sigma Quality Control Policy

Our factory production is according to the standard of Six Sigma.

3. 50+years of in fabrication of the container spreader

The container spreader has high safety requirements. The container spreader in our factory has double protection, electronic protection and mechanical protection to ensure the safety of the container spreader。

More than 50 years of production also ensures safety

Price - Best Price with Best Quality

In the case of the same configuration, our price will be cheaper.

Rationalization of the production process, to a certain extent, save labor costs, save materials.

Overall planning of raw material procurement, reduce raw material cost.

So we can offer a more competitive price.

Patent

we have a lot of patents of the container spreader.

1. patent name : a container spreader positioning device , patent number: 13979517

2. patent name: a container spreader for port cranes to facilitate fixing containers, patent number: 14010625

3. patent name: a  slewing mechanism capable of fine-tuning the angle of the container spreader , patent number: 142341333

4. patent name: a container spreader with dynamically shiftable center of gravity, patent number:10997589.

荣誉证书-有水印

 Package

Factory Provide 20FT and 40FT Boom Hydraulic Container Spreader
Factory Provide 20FT and 40FT Boom Hydraulic Container Spreader


Exhibition
Factory Provide 20FT and 40FT Boom Hydraulic Container Spreader
Factory Provide 20FT and 40FT Boom Hydraulic Container Spreader
Factory Provide 20FT and 40FT Boom Hydraulic Container Spreader

FAQ
ORDER INTRODUCTION:
Pls kindly send us your detailed specifications as follow if you are interested in our container spreaders.
1. What's the SWL of your container spreader?
2. What's the type of your container spreader ?
3. What's the quantity of container spreader?
We will offer you the best suitable solution with best price and quality.
These specifications above can make it clear about your requirements.
Thanks very much for your kindly cooperation!


Contact us
Mia Zhang
0086 13965173046

with 6+ years working experience in container spreader production and sales.


Contact me soon !
